History in Structure

Lledan Brook Aqueduct and Weir

A Grade II Listed Building in Welshpool, Powys

We don't have any photos of this building yet. Why don't you be the first to send us one?

Upload Photo »

Approximate Location Map
Large Map »

Coordinates

Latitude: 52.6592 / 52°39'33"N

Longitude: -3.1442 / 3°8'39"W

OS Eastings: 322704

OS Northings: 307450

OS Grid: SJ227074

Mapcode National: GBR B0.5GLF

Mapcode Global: WH79P.NFY6

Plus Code: 9C4RMV54+M8

Entry Name: Lledan Brook Aqueduct and Weir

Listing Date: 11 March 1981

Last Amended: 29 February 1996

Grade: II

Source: Cadw

Source ID: 7724

Building Class: Transport

ID on this website: 300007724

Location: Carries the Montgomeryshire Canal over the Lledan Brook.

County: Powys

Community: Welshpool (Y Trallwng)

Community: Welshpool

Built-Up Area: Welshpool

Traditional County: Montgomeryshire

Tagged with: Aqueduct

Find accommodation in
Welshpool

Exterior

History: The Montgomeryshire Canal was constructed between 1794 and 1797, but the original aqueduct at this site was replaced in 1836 by J.A.S. Sword, who was the canal company's engineer from 1833. Its design was modelled on the earlier aqueduct by George Buck at Brithdir, which had been built in 1819.

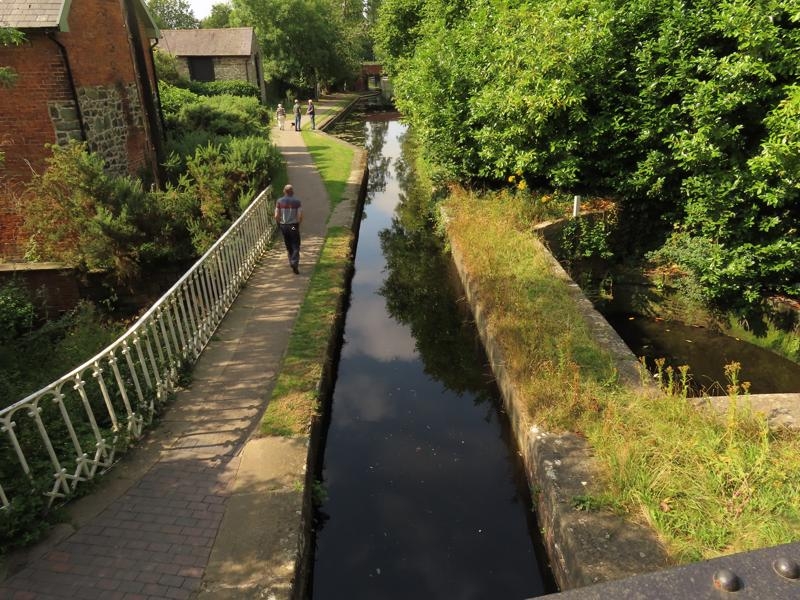

Description: Base and sides of aqueduct formed from a series of bolted cast-iron plates, flanked by paths carried on brick arches. These have conventional segmental arches with rusticated stone voussoirs, with an inscribed tablet above the western arch recording 'J. Sword, Engineer, 1836'. The tow-path side is surmounted by cast-iron railings with trellised decoration, between panelled ashlar terminal piers with domed caps.

On the western side of the aqueduct, brick retaining walls to either bank of the brook flank the pool below a circular weir. This was probably rebuilt with the aqueduct in 1836, and existed to divert water to Domen cornmill.

The aqueduct is a fine example of the engineering associated with the Montgomeryshire Canal, of considerable interest for its engineering as well as for its architectural character. Together with the weir, it forms an important component in a group of structures at the major canal wharf at Welshpool.

Reference: Stephen Hughes, The Archaeology of the Montgomeryshire Canal, 1988, pp.25, 28-9.
